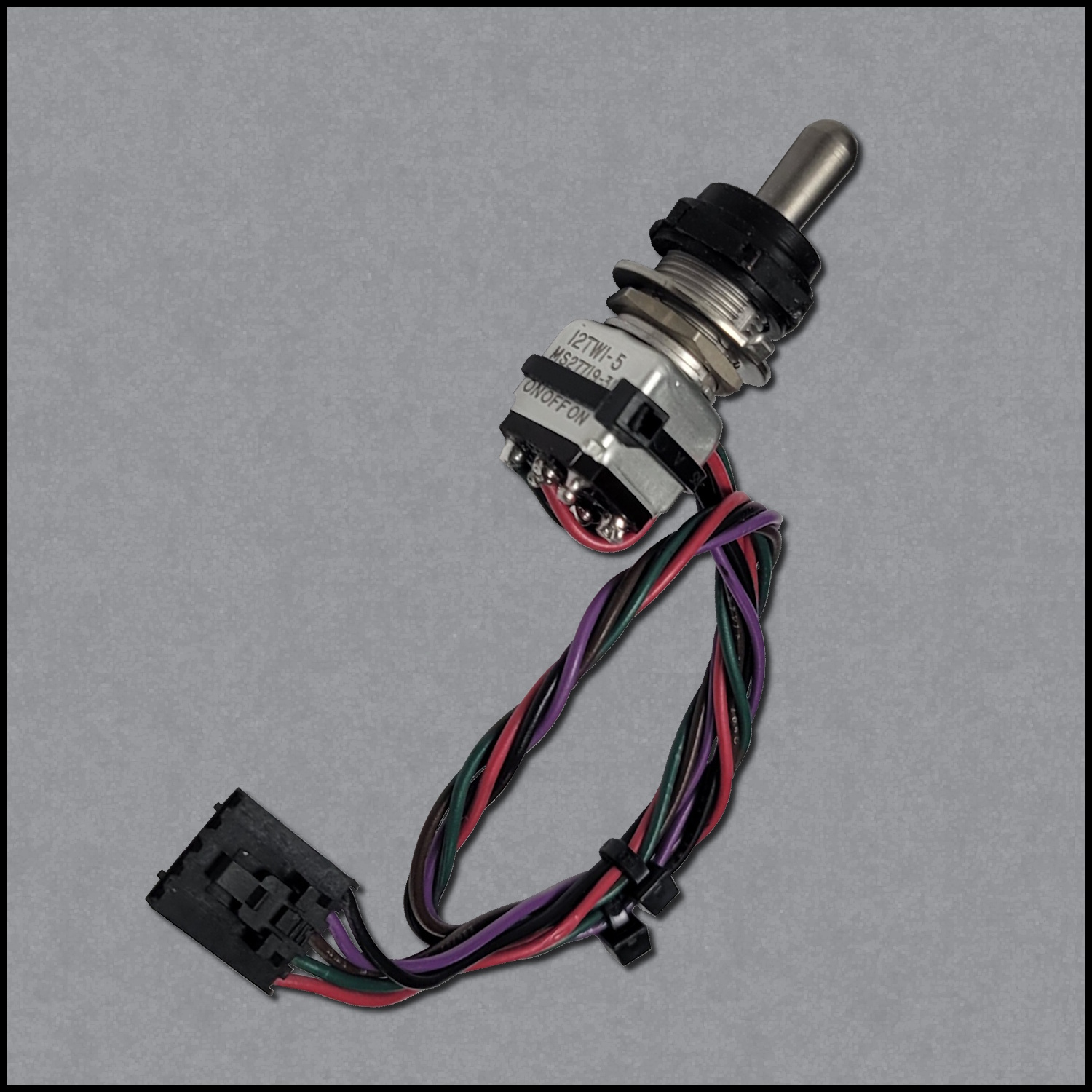

ON/OFF/START Switch with Cable Assy: 198-80500-0006

Description

P/n 198-80500-0006
ON/OFF/START Switch with Cable Assy
Main On-Off-Start toggle switch on Beli-Pak TX transmitter units
~ includes: switch, tooth washer, hex nut, rubber boot, wire harness w/Plug
~ this switch fits these models: XLTX, MLTX, MLTX2, MBT
~ 5-wire assembly, 5-pin plug, wires: Red, Green, Brown, Violet, Black
~ when ordering: Pls verify wire colors & that you need 5-pin Plug shown
Physical Actions of this Switch:
~ (ON)-ON-OFF = Momentary-Maintained-Maintained
… top position………. Momentary for Start/Enable command
… middle position…… Maintained for normal Run/On state
… bottom position….. Maintained, Off, to command unit Off
Part numbers that customers have used this switch for:
198-80500-0006
178-101578-0005
178-01600-0100198
-80500-0005

M-2047
M-20409
MS27719-31
12TW1-5
12164-1RAD2K
~ Note: there are various models and revisions of this switch, the 2nd picture shows variations of this switch that customers have told us is a drop in replacement and the above part numbers are the many part numbers that customers told us that they have used the listed swicth as a drop in replacement for as it may physically look different but electrically performs the same
